Portable Aluminum Alloy Pneumatic Telescopic Antenna Mast 18M Max Load 70KG

Name: Portable Aluminum Alloy Pneumatic Telescopic Antenna Mast 18M Max Load 70KG
Brand: OKAF/ OEM
Price: 1 USD

Brand Name : OKAF/ OEM

Model Number : OK-QD-PP18S

Certification : CE/ RoHS, FCC

Place of Origin : China

MOQ : 1

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500

Delivery Time : 30 DAYS

Packaging Details : wood carton box

Material : 6063 Aluminium Alloy

Surface : hard anodized treatment

Type : Pneuamtic Mast

Operate by : Air compressor

Color : bronze

Max height : 18M

Max payload : 70kg

Wind load capacity : 66km/hour

Packing : Wood carton box

Contact Now

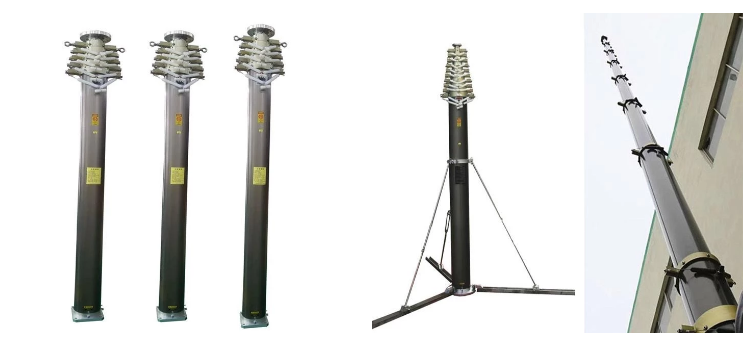

18M Max load 70KG Portable Aluminum Alloy Pneumatic Telescopic Antenna Mast From OKA

What is a Pneumatic Mast?

Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:3m to 30m
Head load capacity:

5kg to 300kg.

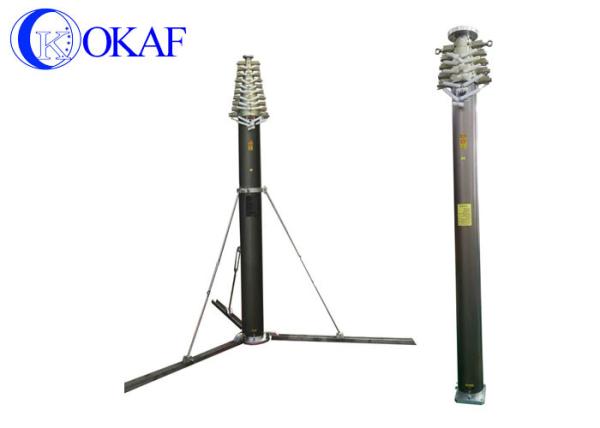

18m Portable Aluminum Alloy Pneumatic Telescopic Antenna Mast
Model No.	OK-QD-PP18S
Tube Material:	Aluminum magnesium alloy 6063B
Tube surface treatment	Anodizing
Color:	Bronze
Specification:	18M
Closed length:	3.4M
Extended length:	18M
Max head-load:	70kgs
Top plate:	Round shape: diameter 150mm, thickness 10mm.With 4pcs*8.5mm holes
Bottom plate:	Round shape: diameter 280mm, thickness 20mm.With 3pcs*20mm holes
Max Working pressure of the mast	0.20MPA
Collar style:	Non-locking collar
Working Temperature:	-15--+50℃
Max Wind load :	66km/h
Accessories	Top plate -----------------------------------------1pc Bottom plate -------------------------------------1pc Control valve-------------------------------------1pc Air pipe------ ------------------------------------ 1pc Nylon pulling wire------------------------------12pcs Steel stakes for fixing pulling wire ---------12pcs Steel stakes for fixing tripod-----------------3pcs Tripod --------------------------------------------1pc

Kindly refer to the following questions,when you send an inquiry:

1: How is max height and how is probably payload do you need?

2: Do you need Pneumatic or manual mast ?

3: Where do you use?

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..
